Description

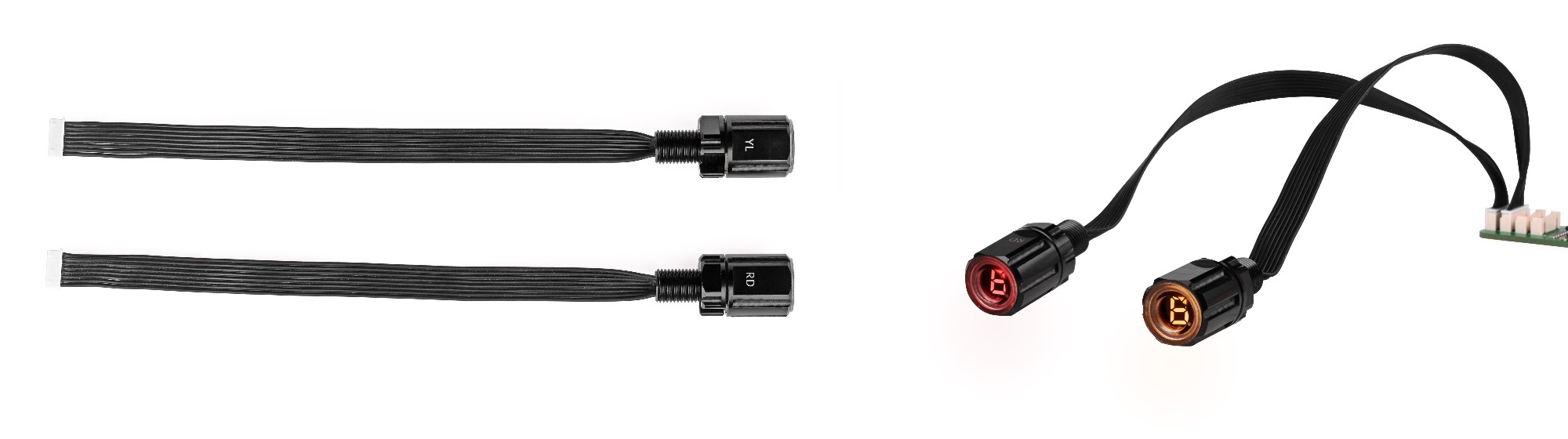

This is 1-bit 0.28-inch 7-segment LED common anode display, which can be installed on end caps for digital display, often used for underwater equipment status indication, and can be matched with a drive board.
This is 1-bit 0.28-inch 7-segment LED common anode display, which can be installed on end caps for digital display, often used for underwater equipment status indication, and can be matched with a drive board.
Shipping List
• 1 x 7-Segment LED Display
• 1 x O-ring • 1 x Nut
• Optional Driver Board: 1×Driver Board + 1×Connection Wire
Specifications
| Item | SKU | Material | Light Color | Weight | Unit Price(US$) |
| Yellow LED 7-Segment Display | 10030303-0001 | PC+Aluminum | Yellow | 17g | 30 |
| Red LED 7-Segment Display | 10030303-0002 | PC+Aluminum | Red | 17g | 30 |
| 7-Segment Display Driver Board | 10030303-0003 | / | / | 11.5g | 14.5 |
Dimension:
| Spec | 7-Segment LED Display |
| Pressure-resistant Depth | 1000 meters |
| Thread Size | M10×1 |
| Display Digits | 1 |
| Display Color | Yellow/ Red |
| Display Size | 0.28 inches |
| Penetrator Material | Aluminum |
| Wire Length | ~200mm |
| Interface Specification | 1.25mm-8Pin |
| 7-Segment Display Voltage Range | 1.7-2.4V |
| Forward Current | 20mA |
| Forward Pulse Current | 60mA |
| Backward Voltage | 5V |
| LED Polarity | Common Anode |
| Brightness | Yellow: 105mcd Red: 22mcd |
| Operating Temperature | -10~60℃ |
| Driver Board Size | 20×55mm |
| Driver Board Voltage | 5V |
| Driver Board Current | 0.2A (max) |
| Number of Driver Board Interfaces | 4 |
| Driver Board Communication Method | USART(TTL) |

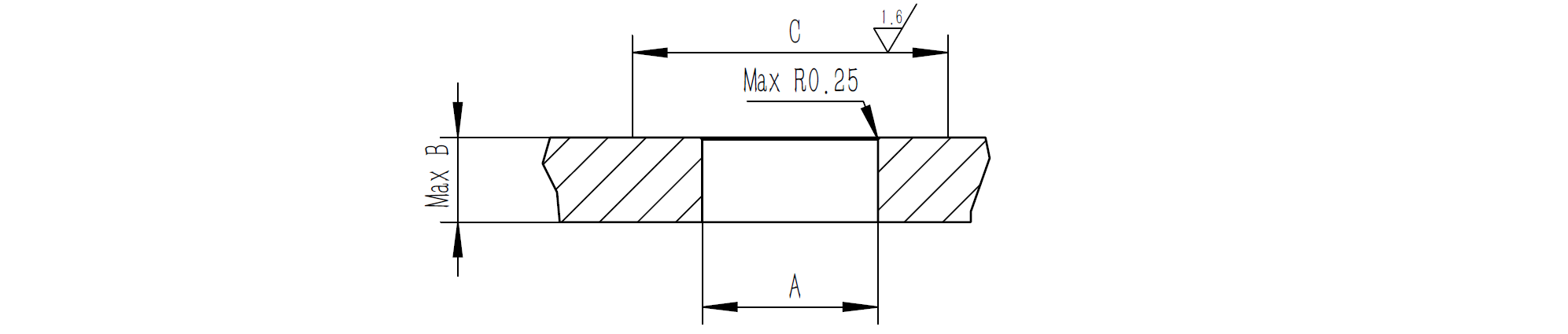

Recommended Size:
| Recommended Size | 7-Segment LED Display |
| Recommended Bulkhead Through Hole Size (A) | Ø10.1±0.1 / Threaded |
| Hatch Cover Thickness (B) | 13 |
| Surface Range (C) | 20 |

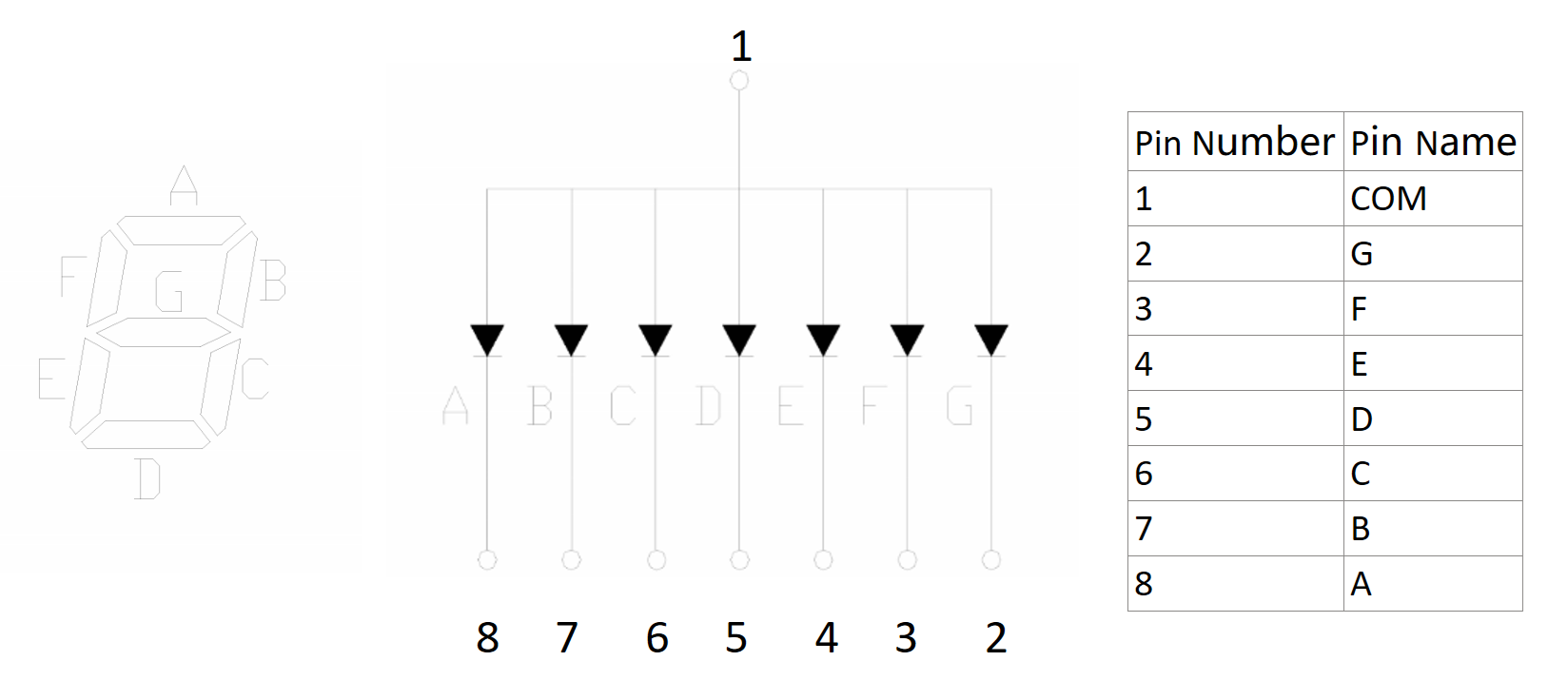

Interface Definition:
FAQ
● Can it directly display the battery power? How is it used to display the battery power level?
It is not possible to display directly. The measurement voltage and 7-segment display driver board need to be added.
● Can the wires be extended? The wires should not be too long, but can be extended to about 1m.
● How many 7-segment LED displays can be connected to the driver board? Up to 4 LED displays can be connected to the drive board.
● Is the input voltage related to the brightness? The higher the voltage the greater the brightness, but overvoltage and overcurrent will cause damage to the LED display. Use external current-limiting resistors.
● Can the interface pass through the holes on the end cap? Bend it slightly to pass through the holes of Ø10.1±0.1.
● Is there an internal driver board? No. The inside is only 8 direct leads for the LED display, so an external driver board is required.
